Project Overview:

Build a compact internal HR knowledge assistant grounded on a SharePoint document library, with role-based security, intelligent fallback handling, and email escalation published to Microsoft Teams for all employees of Sky Soft Connections.

Project Overview & Objectives

This document provides complete technical documentation for the Copilot Studio Internal Knowledge Assistant built for SkySoft Connections. The agent serves as an AI-powered HR support tool that allows employees to query company HR policies, benefits, and procedures directly within Microsoft Teams.

1.1 Objectives

• Provide employees with instant, accurate answers from approved HR documents.

• Restrict document access based on departmental security groups (Finance, Marketing, General).

• Handle edge cases gracefully: greetings, off-topic queries, restricted content, and missing information.

• Escalate unanswered queries to the HR team via automated email.

• Deploy the agent to Microsoft Teams for organization-wide access.

2. System Architecture

2.1 Component Overview

Component	Technology	Role
Conversational AI	Microsoft Copilot Studio	Hosts the agent, topics, and logic flows
Knowledge Base	SharePoint Online (Document Library)	Stores HR, Finance & Marketing documents
Security	Microsoft 365 Security Groups	Controls document access per department
Channel	Microsoft Teams + Copilot 365	User-facing interface for all employees
Email Escalation	Power Automate	Sends unanswered queries to HR mailbox
Query Classifier	GROQ API (LLM)	Detects irrelevant / off-topic queries
Identity	Azure Active Directory (AAD)	Authenticates users and enforces permissions

2.2 Technology Stack

• Microsoft Copilot Studio : No-code / low-code conversational AI platform for building and deploying agents.

• SharePoint Online : Document repository for all HR, Finance, and Marketing policy files.

• Microsoft Teams : Primary deployment channel for employee interactions.

• Microsoft 365 Security Groups : Enforces document-level access control in SharePoint.

• Power Automate : Handles email action when a query cannot be answered by the knowledge base.

• GROQ API  : Fast LLM inference used to classify whether a user message is HR-relevant or off-topic.

• Azure Active Directory : Identity provider ensuring the agent inherits the user’s SharePoint permissions.

3. Prerequisites & Licensing

Requirement	Details
Copilot Studio License	Developer must hold an active Microsoft Copilot Studio license (standalone or bundled with M365).
Microsoft 365 License	End users require an M365 license that includes Teams access. A Copilot Studio license is not required for consumers of the agent.
SharePoint Admin Access	Developer requires SharePoint Site Owner or Admin permissions to create libraries, stop inheritance, and assign security groups.
Power Automate Access	Required for the email escalation flow (included in most M365 plans).
AAD / Entra ID	An Azure Active Directory administrator must create the security groups used for document access control.
GROQ API Key	A free or paid GROQ API key (console.groq.com) is required for off-topic query detection. Store securely in Azure Key Vault or as an environment variable in Power Automate.
Teams Admin	May be required to approve the agent for organization-wide availability if tenant policies restrict app installations.

4. SharePoint Knowledge Base Setup

4.2. Document Library Structure

Three dedicated folders were created inside the SharePoint document library. Each folder is secured independently using unique permission assignments.

Folder Name	Target Users	Content	Security Group
Agent – HR Support Assistant Docs	All Employees	WFH policy, leave policy, medical benefits, employee perks, general HR procedures	Everyone Except External Users
Agent – Finance Support Docs	Finance Team Only	Budget approval matrix, expense policies, financial procedures, payment terms	Agent – Director
Agent – Marketing Team	Marketing Team Only	Campaign approval workflow, brand guidelines, marketing SOPs, media plans	Agent – Marketing

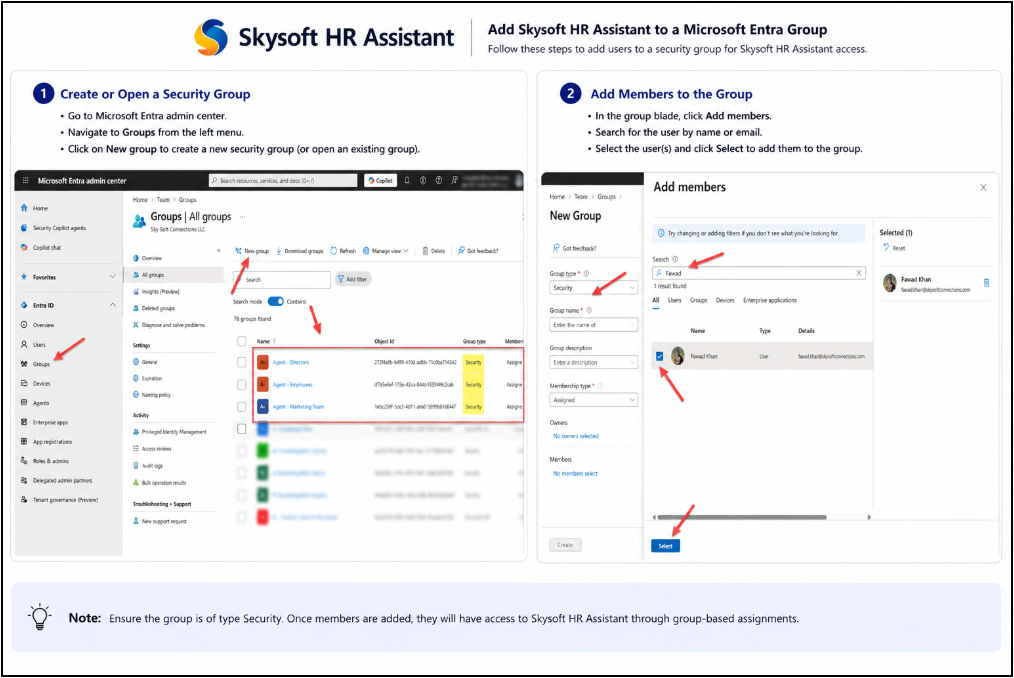

4.2 Security Groups

• Everyone Except External Users : Built-in M365 group covering all internal employees. Grants access to general HR documents.

• Agent – Director  : Custom group for Finance team members and directors. Grants access to Finance support documents.

• Agent – Marketing : Custom group for Marketing team members. Grants access to Marketing team documents.

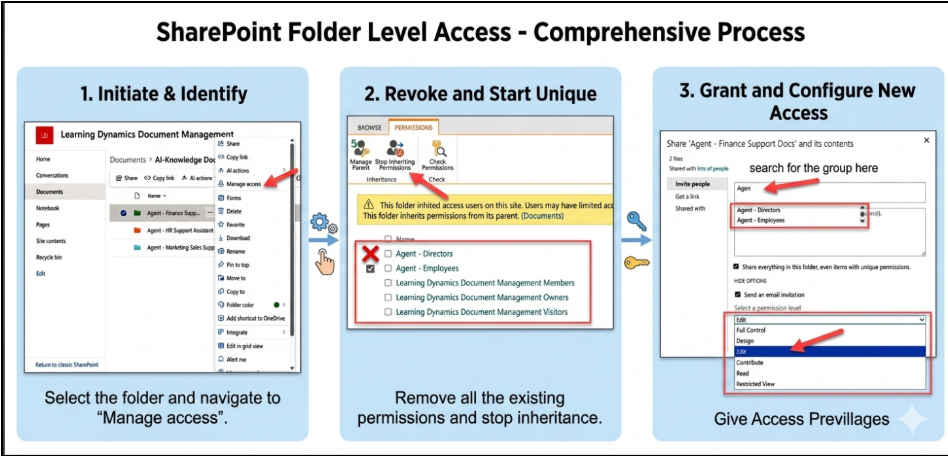

4.3 Folder Permission Assignment

For each folder, apply the following steps in SharePoint:

• Navigate to the document library and open the target folder.

• Go to Manage Access → Advanced Settings → Stop Inheriting Permissions. Confirm the dialog to break the inheritance chain.

• Remove any inherited permission entries that should not apply to this folder.

• Click Grant Permissions, search for the target security group, assign Read permission level, and click Share.

• Repeat for all three folders, assigning the correct security group to each.

Note: The Copilot agent inherits the SharePoint permissions of the logged-in user.SharePoint automatically enforces security at the document library layer, so the agent logic does not require additional filtering.

Copilot Studio Agent Build Steps

5.1  Create the Agent

• Navigate to copilotstudio.microsoft.com and sign in with your licensed Microsoft 365 account.

• Click + New agent. Provide a name (e.g., HR Support Assistant), a short description, and select the appropriate environment.

• Select English (or your organization’s preferred language) as the primary language.

• Click Edit details to set the agent icon, display name, and description that employees will see in Teams.

5.2  Connect SharePoint Knowledge Base

• In the agent editor, navigate to the Knowledge section from the left panel.

• Click + Add knowledge → select SharePoint from the list of knowledge source types.

• Enter the URL of your SharePoint site or the specific document library. Copilot Studio will index the connected documents.

• Allow time for indexing status will show as Ready when complete.

• Verify that the agent is configured to use the end-user’s credentials (not a service account) so SharePoint security groups are respected during queries.

5.3  Custom Topic Configuration

A single Custom Topic HR Query Handler was created to handle all user queries. It acts as the main conversation flow, intercepting all incoming messages and routing them through query classification and knowledge base search logic.

• Trigger: All incoming messages (topic set as primary handler)

• Flow: Message received → GROQ classification → AI Generative Answer → Condition check → Response or escalation

5.4  AI Generative Answer Node

The AI Generative Answer node is the core component that searches the SharePoint knowledge base and generates a response. Configuration:

• Knowledge source: The SharePoint document library connected in step 5.2.

• Strict mode enabled: The node returns an empty/null response if no relevant information is found — it never guesses or uses general AI knowledge.

• Output variable: The generated answer is stored in varGeneratedResponse for use in the subsequent condition node.

• User context: The node executes under the logged-in user’s identity, automatically enforcing SharePoint folder permissions.

5.5  AI Instruction Prompt

The system passes the provided requirement-based instruction to the AI Generative Answer node to control its behavior strictly. This prompt ensures the agent never fabricates information and always responds in a consistent, professional format.

5.6  Condition Logic Blank Response Check

After the AI Generative Answer node executes, the Condition node checks whether the system returned a meaningful response.

Condition	Result	Action Taken
varGeneratedResponse is NOT blank	KB answer found (user has access)	Display the generated response to the user.
varGeneratedResponse IS blank	No info found OR document is restricted	Ask: “I am unable to find this information. Would you like to send an email to HR? Please confirm by entering Yes or No.”

Design Note: A blank response occurs in two situations: (a) the user has KB access but no relevant document exists, or (b) the document exists but the user lacks SharePoint read permission. Both cases trigger the same fallback intentionally avoiding disclosure of which documents exist.

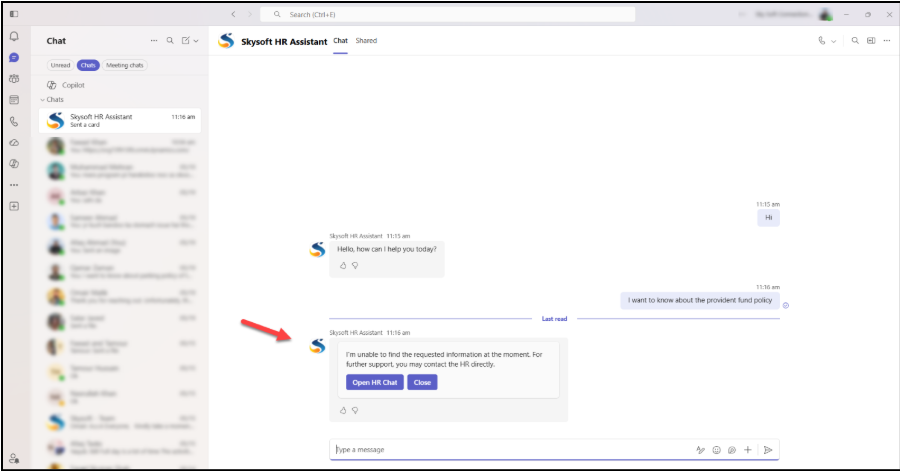

5.7  HR Chat Escalation Process

When a user’s query cannot be resolved using the available knowledge sources, the system automatically escalates the interaction to facilitate direct human support.

Upon detecting an unanswered relevant query, the copilot displays an Adaptive Card within the chat interface presenting the user with two options:

• Open HR Chat: Clicking this button redirects the user directly to the HR chat channel in Microsoft Teams, enabling real-time assistance from an HR representative.

• Close: Clicking this button displays the following message to the user: “Thank you for using the Skysoft HR Assistant. Please try again with a different query or rephrase your request for better results.”

5.8  GROQ API : Irrelevant Query Detection

Before the query reaches the AI Generative Answer node, a GROQ API call classifies whether the user’s message is HR-related or off-topic. This prevents unnecessary KB searches.

Step	Detail
API Endpoint	https://api.groq.com/openai/v1/chat/completions
Model Used	llama3-8b-8192
Classification Prompt	Classify the following user message as either “HR” or “GENERAL”. Reply with only one word: HR or GENERAL.
If GROQ returns GENERAL	Skip KB search. Display off-topic fallback: “I can only assist with queries related to SkySoft Connections HR policies and internal procedures.”
If GROQ returns HR	Proceed to AI Generative Answer node to search SharePoint KB.

6. Response Scenarios & Fallback Logic

The agent handles five distinct query scenarios. Each has a dedicated response path.

Scenario	Trigger / Condition	Bot Response	Handled By
Greeting	User sends: Hi, Hello, Good Morning, etc.	Welcome message + list of supported query types	AI instruction prompt
HR Query Found	HR-related query; document found; user has access	Formatted answer with heading, bold values + closing prompt	AI Generative Answer node
HR Query Not Found	HR-related query; no relevant document exists in KB	Unable to find → email escalation prompt	Blank response condition
Restricted Document	HR-related query; document exists; user lacks SharePoint access	Same as Not Found — blank response triggers email prompt	SharePoint security + blank condition
Irrelevant Query	GROQ classifies message as GENERAL	Off-topic fallback (no email prompt triggered)	GROQ API classifier

7.Deployment to Microsoft Teams

7.1  Publish the Agent

• In Copilot Studio, click the Publish button in the top-right corner of the agent editor.

• Review any validation warnings, then click Publish to make the latest version live.

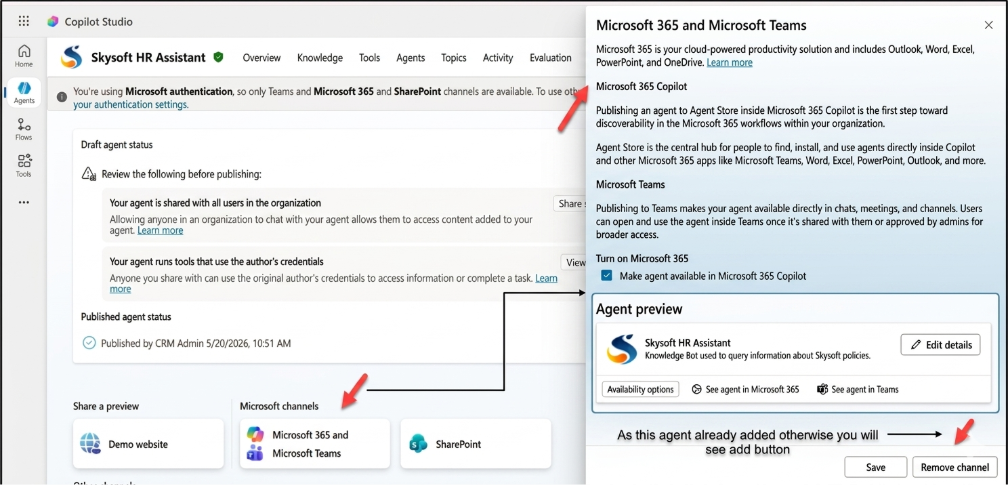

7.2  Add Teams & Copilot 365 Channels

• In the agent editor left sidebar, click Channels.

• Select Microsoft Teams and follow the prompts to configure the Teams app manifest.

• Return to Channels and also select Microsoft Copilot 365 to make the agent available in the M365 Copilot interface.

• For each channel, click Add or Enable. Copilot Studio now registers the agent as a Microsoft Teams application.

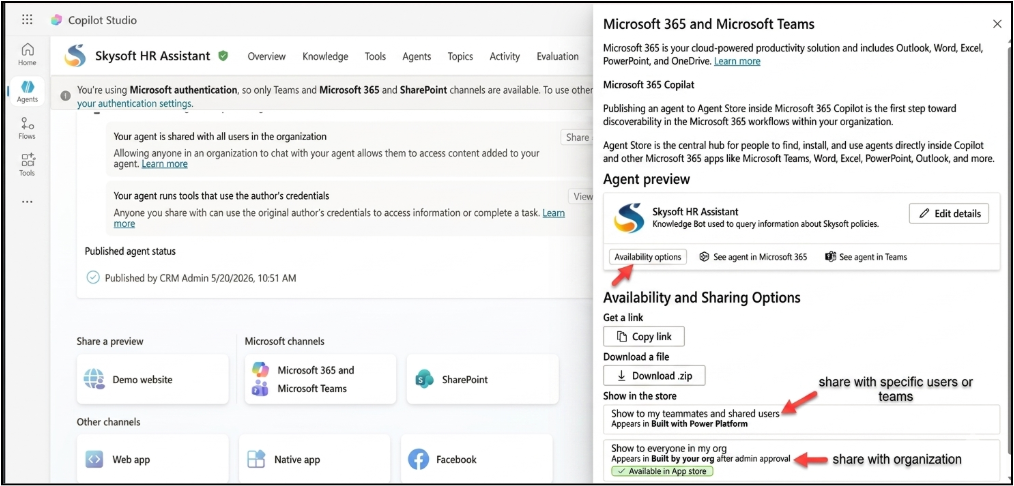

7.3  Availability Settings

• In Channels settings for Microsoft Teams, click the Availability tab.

• Select scope: All members in the organization (visible to every Teams user) or Specific users or groups (restricts visibility to named users or Azure AD groups).

• Click Save. Changes may take a few minutes to propagate.

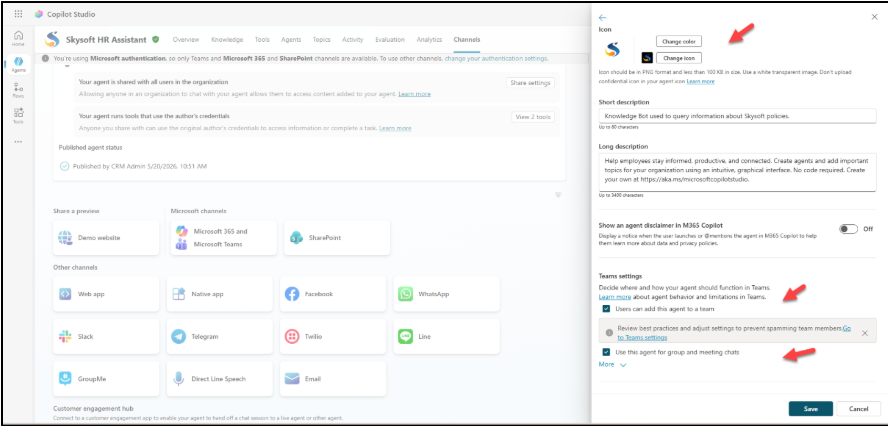

7.4  Agent Settings & Branding

Setting	Value
Display Name	HR Support Assistant
Short Description	Get instant answers to HR policy questions, leave information, and employee benefits.
Long Description	Helps SkySoft Connections employees find information about HR policies, leave, medical benefits, and company procedures directly in Microsoft Teams.
Icon	192×192 px PNG (company logo or HR badge)
Accent Color	Match company brand color (hex value)
Developer Name	SkySoft Connections IT / Development Team

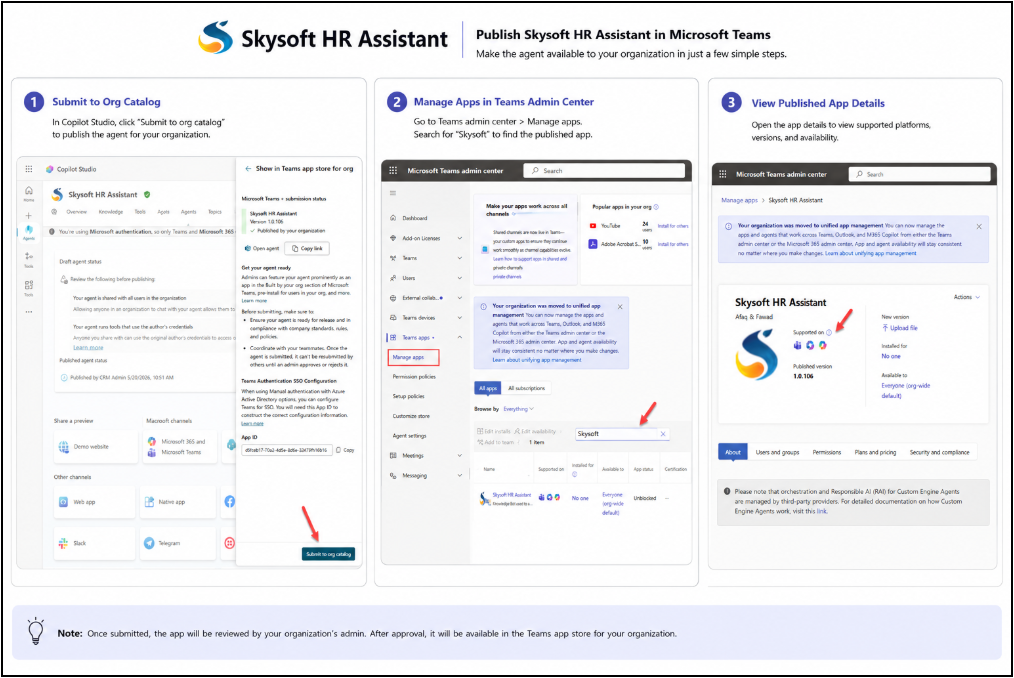

7.5  Submit to Org Catalog & Admin Approval

• Go to Availability settings → click Show to everyone in my Org and submit.

• After submission, the status will show as Pending Request.

• In Teams Admin Center → Manage Apps → search for the agent → Publish. It may take a few hours to appear.

• Once approved, employees can find the agent under Teams Apps in the left sidebar.

8. Security Architecture

SharePoint enforces security at the document library layer instead of the Copilot agent itself. The agent uses the authenticated user’s identity and retrieves only the documents that the user has permission to access. This leverages Microsoft’s native access control infrastructure.

8.1 Security Group Design

Security Group	Members	Accessible Folders	Use Case
Everyone Except External Users	All internal employees (automatic)	Agent – HR Support Assistant Docs	General HR queries for the whole organization
Agent – Marketing	Marketing team members	Agent – Marketing Team	Marketing SOPs and campaign approvals — restricted to marketing staff
Agent – Director	Finance team members and directors	Agent – Finance Support Docs	Financial policies and budget documents — restricted to authorized finance roles

8.2 Permission Matrix by User Type

User Type	HR Support Docs	Finance Docs	Marketing Docs	Agent Behaviour
General Employee	✓ Access	✗ No Access	✗ No Access	Answers HR queries; fallback + email prompt for Finance/Marketing
Marketing Team Member	✓ Access	✗ No Access	✓ Access	Answers HR & Marketing queries; fallback + email prompt for Finance
Finance / Director	✓ Access	✓ Access	✓ Access	Answers HR & Finance queries; fallback + email prompt for Marketing

Security Design Principle: The agent never reveals whether users lack access to a document or whether the document does not exist. Both scenarios produce an identical ‘unable to find information’ response, preventing information leakage about confidential documents.

9. Demo

9.1 General HR Query : WFH Policy

Demo 9.1: General HR Query WFH Policy
User account	user 1 (General Employee + Marketing Group member)
User query	“I want to know about WFH policy”
Expected document source	Agent – HR Support Assistant Docs (accessible to all employees)
Expected response	Formatted policy answer from the WFH policy document
Security group check	Everyone Except External Users (user 1) is included

9.2 Marketing Query Campaign Approval Workflow

Demo 9.2: Marketing Query Campaign Approval Workflow
User account	User 2 (member of Agent – Marketing security group)
User query	“What is Campaign Approval Workflow?”
Expected document source	Agent – Marketing Team (accessible to Marketing group members)
Expected response	Formatted answer from the Marketing Support documentation
Security group check	Agent – Marketing user 2 has read access

9.3 Finance Query Budget Approval Matrix (Restricted)

Demo 9.3: Finance Query Budget Approval Matrix (Restricted)
User account	User 1 (NOT a member of Agent – Director / Finance group)
User query	“What is the amount of Budget Approval Matrix?”
Expected document source	Agent – Finance Support Docs (RESTRICTED user 3 has no access)
Expected response	Fallback: “I am unable to find this information. Would you like to send an email to HR?”
If user types Yes	Power Automate triggers email to HR mailbox with the original query
Security enforcement	SharePoint returns no results  AI Generative Answer returns blank  Condition routes to fallback

9.4 Irrelevant Query Weather

Demo 9.4: Irrelevant Query Weather
User account	User 4
User query	“What is the Weather condition outside today?”
GROQ classification result	GENERAL (not HR-related)
KB search triggered	No query is rejected before reaching the AI Generative Answer node
Expected response	Off-topic fallback message citing SkySoft Connections scope

9.5 Testing Checklist

Use the following checklist to validate the agent before releasing it to all employees.

Test Case	Test Input	Expected Result
Greeting handling	“Hello”	Welcome message with HR topics listed
Greeting Urdu	“Assalamualaikum”	Professional welcome response
Valid HR query	“What is the WFH policy?”	Formatted policy answer + closing prompt
Valid Marketing query (Marketing user)	“What is Campaign Approval Workflow?”	Marketing doc answer returned
Finance query (non-Finance user)	“What is Budget Approval Matrix?”	Cannot find information + email prompt
Finance query (Finance user)	“What is Budget Approval Matrix?”	Correct financial answer returned
Off-topic query	“What is the weather today?”	Off-topic fallback (no email prompt)
Email escalation confirm	Type ‘Yes’ after ‘cannot find’	Email sent confirmation message
Email escalation cancel	Type ‘No’ after ‘cannot find’	Cancellation message + restart
HR receives email	Check HR mailbox after Yes confirmation	Email arrives with user query content
Security general user cannot see Finance	General employee asks Finance question	Fallback (no Finance data returned)
Agent visible in Teams	Open Teams, search HR Support Assistant	Agent found in Apps/Search
