From 9 Seconds to Instant: Re-Engineering Dynamics 365 Request Queue Processing
The integration needed to process incoming requests reliably while maintaining the correct processing order and protecting CRM data consistency.
PROJECT SPOTLIGHTDynamics 365Microsoft expertise. Practical delivery.
01 / PROJECT HIGHLIGHT
Instant API acknowledgment instead of 7–9 second delays
02 / PROJECT HIGHLIGHT
FIFO queue processing keeps requests in the correct order
03 / PROJECT HIGHLIGHT
Sequential CRM operations reduce data conflicts
04 / PROJECT HIGHLIGHT
Background processing improves stability and scalability
01 / PROJECT DETAIL
From 9 Seconds to Instant: Re-Engineering Dynamics 365 Request Queue Processing
How Sky Soft Connections re engineered a Dynamics 365 CRM integration to deliver faster API responses, reliable request ordering, and consistent CRM processing.
02 / Business Context
The client was using an external system, Instaleap , to send job-tracking requests to Microsoft Dynamics 365 CRM.
The integration needed to process incoming requests reliably while maintaining the correct processing order and protecting CRM data consistency.
Client: Fully anonymized
CRM Platform: Microsoft Dynamics 365
Integration: External System → Dynamics 365 CRM
Technology: ASP.NET Web API, C#, .NET Framework
Process: Request → CRM Processing → API Response
Note: The client’s company name, industry, and employee names have been intentionally omitted.
03 / PROJECT DETAIL
Every Request Had to Wait for CRM Processing
The existing integration processed requests synchronously.
Each API request had to complete its Dynamics 365 business logic before returning a response to the external system.
During peak periods, this could result in 7–9 seconds of waiting for acknowledgment.
At the same time, multiple requests arriving concurrently created risks of:
Requests being processed out of order
- Race conditions
Conflicting CRM updates
Slow API responses
Inconsistent CRM data
The integration had become a bottleneck for both performance and reliability.
04 / PROJECT DETAIL
Business Impact of the Existing Process
Operational Impact
- Slow API response times
- Requests blocked by CRM processing
- Increased processing delays during peak loads
05 / PROJECT DETAIL
Data Impact
- Risk of overlapping CRM operations
- Potential race conditions
- Inconsistent updates when requests arrived concurrently
06 / PROJECT DETAIL
Integration Impact
- External systems had to wait for CRM operations
- Request ordering was difficult
- Scaling concurrent processing increased reliability risks
07 / THE SOLUTION
The Sky Soft Connections Solution
FIFO Request Queue with Background Processing
Sky Soft Connections redesigned the integration by separating request intake from Dynamics 365 processing.
Instead of processing CRM operations directly within the API request, incoming requests are immediately placed into a thread-safe FIFO queue.
The new architecture follows:

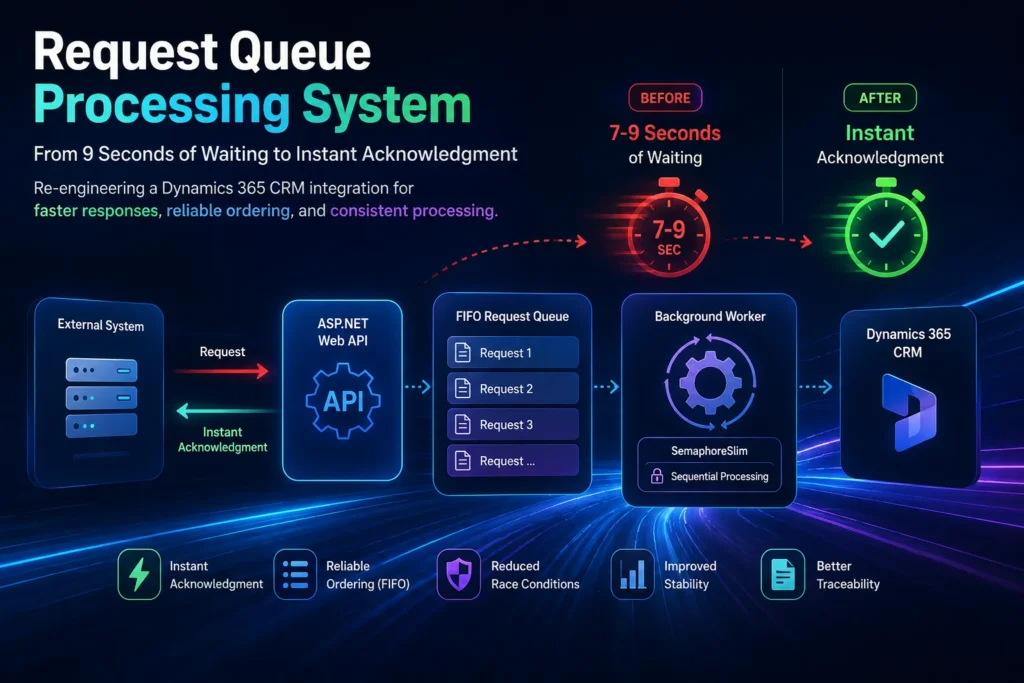

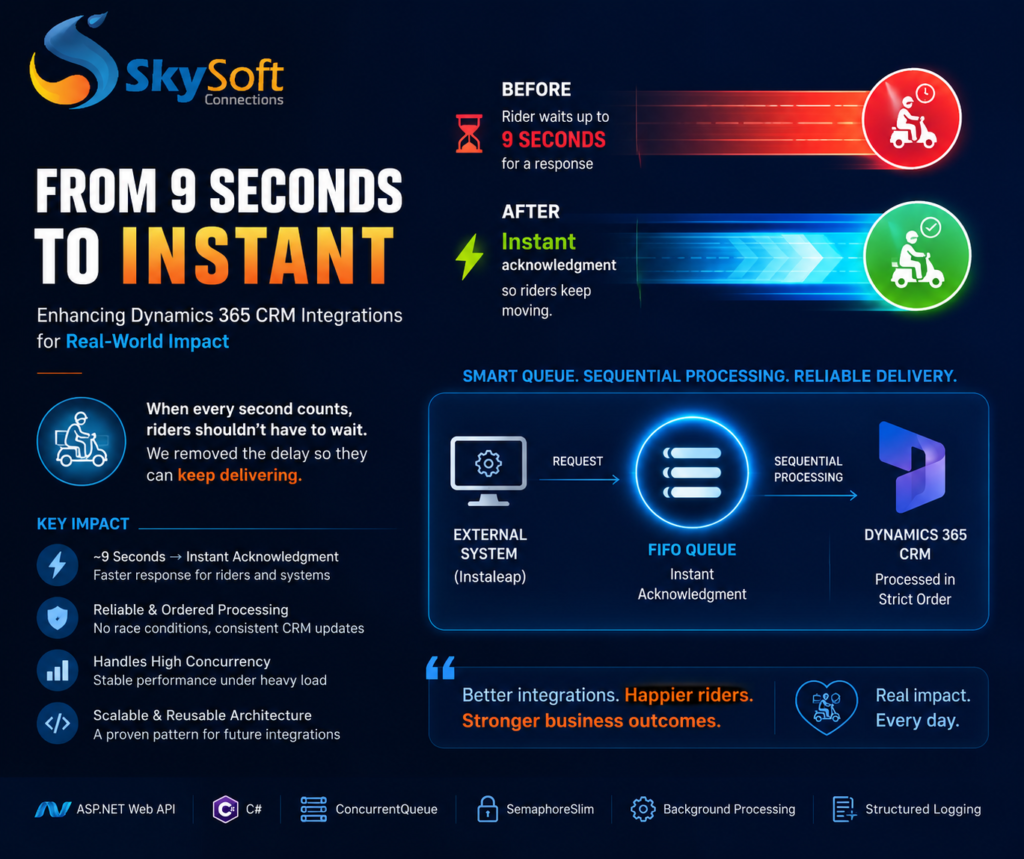

Request Received → Instant Acknowledgment → FIFO Queue → Background Worker → Dynamics 365 CRM
This allows the external system to continue its workflow while the integration safely processes requests in the background.
08 / PROJECT DETAIL
How the Request Queue Works
01 : RECEIVE
The API receives a request from the external system and immediately acknowledges it.
02 : QUEUE
The request is added to a thread-safe ConcurrentQueue, preserving the order in which requests were received.
03 : PROCESS
A background worker continuously picks up queued requests for processing.
04 : CONTROL
SemaphoreSlim controls execution so CRM operations are processed sequentially and do not conflict with one another.
05 : UPDATE
The request is processed against Dynamics 365 CRM and the required business operations are completed.
06 : LOG
Structured logging records processing activity, errors, and request status for improved traceability.
The solution combines Microsoft technologies into a single automated workflow.
09 / PROJECT DETAIL
Technology & Integration Architecture
ASP.NET Web API
Receives integration requests and provides immediate, non-blocking acknowledgments.
ConcurrentQueue
Provides thread-safe FIFO request handling and maintains request order.
Background Processing
Separates CRM processing from the API request lifecycle.
SemaphoreSlim + Dynamics 365 CRM
Controls concurrency and ensures requests are processed sequentially while keeping Dynamics 365 CRM as the system of record for all business operations.
10 / PROJECT DETAIL
Reusability Across Industries & Departments
The underlying solution is a reusable asynchronous request-queue architecture for Dynamics 365 integrations. It can be used whenever an external system sends multiple requests to Dynamics 365 that need to be acknowledged quickly but processed reliably and, where required, in a specific order.
Retail / eCommerce
order, delivery, picking, rider and fulfillment status updates
Logistics & Transportation
shipment, delivery, dispatch and tracking events
Manufacturing
production, inventory, warehouse and order-status updates
Healthcare
integration events and patient/service workflow updates where controlled processing is required
Distribution & Wholesale
order, inventory and fulfillment integrations
Finance
transaction or integration events requiring reliable sequential processing
11 / PROJECT DETAIL
Business Outcomes
Faster API Responses
Requests that previously required 7–9 seconds to receive an acknowledgment can now be acknowledged immediately.
Reliable Request Ordering
FIFO processing ensures requests are handled in the order they were received.
Reduced Race Conditions
Sequential execution prevents overlapping CRM operations from creating conflicting updates.
Improved Stability
The integration remains more stable when handling multiple concurrent requests and higher workloads.
Better Traceability
Structured logging provides visibility into request processing and errors.
